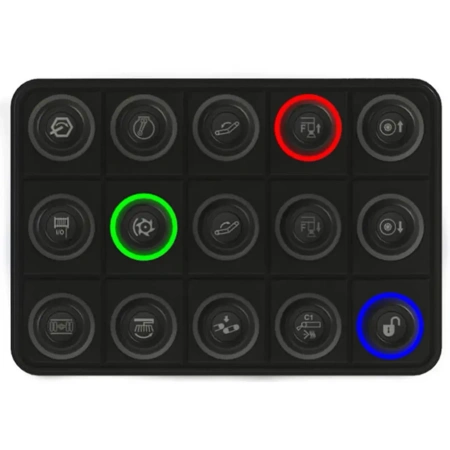

CAN KEYBOARDS
Our range of products also includes CAN-bus based keyboard (available with different key layouts). Designed to withstand the harshest conditions, completely immune to water, mud or fuel.
We should also to mention that as compared to a traditional switch panel the wiring is greatly simplified.
Built in LEDs indicate button state (RGB colors) and additionally act as back-light for the keyboard.
The behaviour of individual keys is fully configurable using EMU BLACK or PMU client software.
Download Files
canKeyboard.pdf
The unique idea of a replacement system for individual inserts means it is easy to rearrange the keypad layout using the existing insert without affecting appearance. Moreover, custom inserts can be supplied. Plastic laser engraved inserts are not included in keyboards box.
Key features
CAN bus compatible keyboard,
125kbps, 250kbps, 500kbps, and 1000kbps CAN bus speed supported,
works with EMU BLACK (1 keyboard) and PMU devices (up to 2 keyboards),
full customization possible,
IP 67 rated
https://www.ecumaster.com/products/can-keyboards/
https://www.ecumaster.com/wp/wp-content/uploads/2021/09/canKeyboard-21.09.2021.pdf
CAN KEYBOARDS
Our range of products also includes CAN-bus based keyboard (available with different key layouts). Designed to withstand the harshest conditions, completely immune to water, mud or fuel.
We should also to mention that as compared to a traditional switch panel the wiring is greatly simplified.
Built in LEDs indicate button state (RGB colors) and additionally act as back-light for the keyboard.
The behaviour of individual keys is fully configurable using EMU BLACK or PMU client software.
Download Files
canKeyboard.pdf
The unique idea of a replacement system for individual inserts means it is easy to rearrange the keypad layout using the existing insert without affecting appearance. Moreover, custom inserts can be supplied. Plastic laser engraved inserts are not included in keyboards box.
Key features
CAN bus compatible keyboard,
125kbps, 250kbps, 500kbps, and 1000kbps CAN bus speed supported,
works with EMU BLACK (1 keyboard) and PMU devices (up to 2 keyboards),
full customization possible,
IP 67 rated
https://www.ecumaster.com/products/can-keyboards/
https://www.ecumaster.com/wp/wp-content/uploads/2021/09/canKeyboard-21.09.2021.pdf
Our range of products also includes CAN-bus based keyboard (available with different key layouts). Designed to withstand the harshest conditions, completely immune to water, mud or fuel.
We should also to mention that as compared to a traditional switch panel the wiring is greatly simplified.
Built in LEDs indicate button state (RGB colors) and additionally act as back-light for the keyboard.
The behaviour of individual keys is fully configurable using EMU BLACK or PMU client software.
Download Files
canKeyboard.pdf
The unique idea of a replacement system for individual inserts means it is easy to rearrange the keypad layout using the existing insert without affecting appearance. Moreover, custom inserts can be supplied. Plastic laser engraved inserts are not included in keyboards box.
Key features
CAN bus compatible keyboard,
125kbps, 250kbps, 500kbps, and 1000kbps CAN bus speed supported,
works with EMU BLACK (1 keyboard) and PMU devices (up to 2 keyboards),
full customization possible,
IP 67 rated
https://www.ecumaster.com/products/can-keyboards/
https://www.ecumaster.com/wp/wp-content/uploads/2021/09/canKeyboard-21.09.2021.pdf
Our range of products also includes CAN-bus based keyboard (available with different key layouts). Designed to withstand the harshest conditions, completely immune to water, mud or fuel.
We should also to mention that as compared to a traditional switch panel the wiring is greatly simplified.
Built in LEDs indicate button state (RGB colors) and additionally act as back-light for the keyboard.
The behaviour of individual keys is fully configurable using EMU BLACK or PMU client software.
Download Files
canKeyboard.pdf
The unique idea of a replacement system for individual inserts means it is easy to rearrange the keypad layout using the existing insert without affecting appearance. Moreover, custom inserts can be supplied. Plastic laser engraved inserts are not included in keyboards box.
Key features
CAN bus compatible keyboard,
125kbps, 250kbps, 500kbps, and 1000kbps CAN bus speed supported,
works with EMU BLACK (1 keyboard) and PMU devices (up to 2 keyboards),
full customization possible,
IP 67 rated
https://www.ecumaster.com/products/adu/
Advanced Display Unit
We are proud to announce the new ECUMASTER Racing Dash family of products. We designed the ADU5 and ADU7 in response to market demand for a cost-effective dash display with logging capabilities. Our specific goal was to create a fully customizable, feature-rich, quality solution for competitive drivers. We consulted professional drivers and race engineers and designed the ADU to exceed their requirements.
Above all, the ADU is designed to display all critical information in an easy to read manner, along with a comprehensive strategy for displaying alarms.
Our Advanced Display Units are available in 5” and 7” versions. Both versions feature high resolution, high visibility anti-glare screens, guaranteeing perfect visibility in any lighting conditions. The ADU comes with multiple pre-configured pages, which can be customized by the end user to display data required at every race stage (e.g. practice, qualification, race, troubleshooting, etc.). Pages may be changed manually or automatically (based on defined conditions). Each channel displayed on a page (gauges, icons, texts, etc.) can be easily modified in real time using user-friendly Windows based software. Our comprehensive overlay system facilitates a multiple page display for important data (e.g. low oil pressure, best lap, etc.) independent of the actual page displayed.
The ADU is also equipped with 15 ultra-bright RGB LEDs which can be used as an advanced gear-dependent shift light and can be modified by user-defined logic (for alarms, low fuel level, etc.).
Using IR beacons or a GPS system, the dash turns into a powerful lap timer with a predictive timing function. By selecting the Qualification page, you enable a “Qualification Mode” which uses advanced predictive lap timing based on an automatically updated “best” reference lap.
User configurable timers can be adjusted for additional functionality (pit stop timer, etc.). The ADU also supports thermal cameras for monitoring brake discs or tyre temperatures (up to 16 points per tyre).
Communication with other devices in the car is provided via two built-in, independent CAN-BUS communication ports. CAN templates are provided for most popular ECUs, and are fully configurable, allowing you to connect our hardware to virtually any engine management system.
To ensure that all features work seamlessly, our device is based on a 32-bit automotive controller paired with a state of the art graphics processor. This combination provides the perfect working environment for any engineer or driver and guarantees anti-aliased, high-quality graphics at 50 frames per second.
For further analysis, data channels can be logged to a USB Flash drive with a frequency of up to 500Hz. Diving deep into the data is possible thanks to our state-of-art software Data Master.
All of these “Must Have” features and more are housed in a rugged, specially CNC machined, black anodized enclosure.
Advanced Display Unit
We are proud to announce the new ECUMASTER Racing Dash family of products. We designed the ADU5 and ADU7 in response to market demand for a cost-effective dash display with logging capabilities. Our specific goal was to create a fully customizable, feature-rich, quality solution for competitive drivers. We consulted professional drivers and race engineers and designed the ADU to exceed their requirements.
Above all, the ADU is designed to display all critical information in an easy to read manner, along with a comprehensive strategy for displaying alarms.
Our Advanced Display Units are available in 5” and 7” versions. Both versions feature high resolution, high visibility anti-glare screens, guaranteeing perfect visibility in any lighting conditions. The ADU comes with multiple pre-configured pages, which can be customized by the end user to display data required at every race stage (e.g. practice, qualification, race, troubleshooting, etc.). Pages may be changed manually or automatically (based on defined conditions). Each channel displayed on a page (gauges, icons, texts, etc.) can be easily modified in real time using user-friendly Windows based software. Our comprehensive overlay system facilitates a multiple page display for important data (e.g. low oil pressure, best lap, etc.) independent of the actual page displayed.
The ADU is also equipped with 15 ultra-bright RGB LEDs which can be used as an advanced gear-dependent shift light and can be modified by user-defined logic (for alarms, low fuel level, etc.).
Using IR beacons or a GPS system, the dash turns into a powerful lap timer with a predictive timing function. By selecting the Qualification page, you enable a “Qualification Mode” which uses advanced predictive lap timing based on an automatically updated “best” reference lap.
User configurable timers can be adjusted for additional functionality (pit stop timer, etc.). The ADU also supports thermal cameras for monitoring brake discs or tyre temperatures (up to 16 points per tyre).
Communication with other devices in the car is provided via two built-in, independent CAN-BUS communication ports. CAN templates are provided for most popular ECUs, and are fully configurable, allowing you to connect our hardware to virtually any engine management system.
To ensure that all features work seamlessly, our device is based on a 32-bit automotive controller paired with a state of the art graphics processor. This combination provides the perfect working environment for any engineer or driver and guarantees anti-aliased, high-quality graphics at 50 frames per second.
For further analysis, data channels can be logged to a USB Flash drive with a frequency of up to 500Hz. Diving deep into the data is possible thanks to our state-of-art software Data Master.
All of these “Must Have” features and more are housed in a rugged, specially CNC machined, black anodized enclosure.
https://www.ecumaster.com/products/emu-black/
TECHNOLOGY
The EMU Black is assembled according to IPC-S-815A standards to ensure high reliability of the product. The device is manufactured on an automated assembly line with optical inspection, automatically tested including burn-in. The PCB board quality and design, special surface coating and IP60 enclosure keeps the device operational in the harshest environments. The components used allow continued operation in a very wide temperature range (AECQ-100 GRADE 2 (-40 to +105°C).
SPECIFICATION
GENERAL
Temperature range AECQ100 GRADE2 (-40 to +105°C)
Reverse battery protection Yes, internal
Operating voltage 6-22V, immunity to transients according to ISO 7637
Enclosure IP 60, custom CNC machined aluminium
Size (mm) and weight(g) 150x72x31, 390
Connectors 1 x 24, 1 x 39 FCI Automotive connector
PC communication USB (with PC client software), serial, CAN
OUTPUTS
Injector outputs 6 protected outputs 5A, low side
Ignition outputs 6 outputs 7A(15A peak) (passive & active coils supported)
Aux outputs 6 protected outputs 5A, low side
Other outputs Full bridge up to 7A, can be used as separate outputs or 2 H-Bridges
WBO heater Protected low side up to 5A
Communication Serial, CAN BUS 2.0B
INPUTS
Analog inputs 9 inputs, resolution 10Bits, 0-5V (protected)
EGT inputs 2 for K-Type thermocouple
Knock sensor 2 inputs
Oxygen sensor LSU 4.2, LSU 4.9 or Narrow band
Trigger inputs 3 (primary, 2 cams) Hall/ VR software selectable
VSS 1 (Hall / VR)
Flex Fuel Sensor Yes
Switch inputs 3 inputs, switched to ground
SENSORS
Temperature sensors IAT, CLT, Oil temperature, AC evap temperature
Pressure sensor MAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor, Back pressure
Oxygen sensor LSU 4.2 or 4.9 (built in controller), Narrow band, external WBO controllers
Speed Vehicle speed sensor (VR/HALL), Gear sensor (sensor, calculated)
FUELING
Injectors Up to 8 HiZ injectors (sequential)
Injection angle control 0-720 deg, start or end of injections
Battery compensation User defined, wizard for popular injectors
Fueling strategies VE based speed density, Alpha N
Air charge temp. Based on IAT and CLT
VE table 2 tables 16×20 (Load x RPM), resolution of 0.1%
Individual cylinder trim Yes
Staged injection Yes
Additional correction Oxygen sensor corrections, EGT correction (per cylinder), BARO, TPS vs MAP, TPS vs RPM, Warmup, Nitrous, LC, ALS, ASE, Fuel pressure, Knock sensor
Lambda based real time correction Using Lambda target table
Acc. / Deceleration enrichment Yes
IGNITION
Ignition outputs 6 for passive and active coils (software selectable)
Supported triggers N-1, N-2, N-3, N+1, Multitooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Wiliams / Alpine, Colt 1.5CZ, Wrangler
Ignition angle table 2 tables 16×20 (Load x RPM), resolution of 0.5 Deg
Per cylinder trim Yes
Dwell time battery compensation Used defined, wizard for popular coils
Odd fire compatibility Application dependent
Additional correction CLT, IAT, TPS vs MAP, Nitrous, Idle, Knock sensor, LC, Pit limiter, ALS, Flat shift, Timers, Acc. enrichment
KNOCK SENSING
Channels 2
Resonant frequency range 1-20kHz, 3rd order AAF
Sampling Ignition event driven, knock window
Actions Ignition retard, fuel enrichment, dashboard indication
IDLE CONTROL
Control type PWM solenoids (2,3 wires), drive by wire, stepper motors (bi and unipolar), ignition cut, fuel cut
Control strategy Open / Close loop , ignition angle control
VE correction Yes, for Alpha-N
Corrections AC clutch, coolant fan, analog input
BOOST CONTROL
Boost ref and target tables 2 sets 10×10 (TPS vs RPM)
Control strategies Open / Closed loop (PID based)
Corrections Gear, VSS, IAT, EGT
DRIVE BY WIRE
Control strategy Advanced 3D PID + static friction compensation
Supported throttles All with DC motor and current requirement lower than 6.5A
Wizard for 28 popular electronic throttles
PPS to throttle position characteristic 3D table
BLIP support Yes
ALS support Yes
TRACTION CONTROL
TC strategy Delta RPM, gear compensation
Torque reduction Spark cut using 3D table (16×20)
Sensitivity control 10 position rotary switch
VARIABLE VALVE TIMING
Supported systems VVTi, MiVec, VANOS, Double Vanos
Number of camshafts 2
Control strategy PID based closed loop, CAM angle target tables 12×12
FLEX FUEL
Ethanol content measurement Yes
Fuel temperature measurement Yes
Tables blending VE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, Warmup
Fuel temperature PW correction Yes
SPORT
ALS 2 independent ALS setting, DBW support
Shift light Per gear shift light
Launch control Yes
Gear cut Yes (Open loop), DBW blip supported
Source: Switch, load cell, CAN
Pit limiter Yes
Rolling anti lag Yes
ENGINE PROTECTION
Fail safe values for critical sensors Yes
Dashboard indication of failures Yes, user defined
Over temperature engine protection Yes (oil and coolant), user defined, RPM limit
Low oil pressure protection Yes, user defined, shut off
Fuel pressure protection Yes, fuel dose compensation, RPM limit, engine shut off
High exhaust temperature Alarm, per cylinder fuel trim, boost limit
CAN BUS
CAN standard 2.0B 125, 250, 500, 1000 kbps
Supported CAN Dashes ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM
Supported OEM CAN streams BMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST, EVO X (AYC support)
OTHER
Unused injection outputs can be used as AUX output Yes
Output functions Fuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output, AC clutch, main relay, speedometer, tachometer
Password protection Yes, 2 levels
Timers Fuel, Ignition, Boost, timers controlled by virtual outputs
Serial dashboard support AIM, RaceTechnology
Autotune Yes
Built in trigger scope Yes
Logging Real time logging to PC computer, logging on external loggers (serial / CAN)
Specification
https://www.ecumaster.com/products/emu-classic/
GENERAL
Enclosure protection IP 60
Temperature range AECQ100 GRADE3 (-40 to +85C)
Reverse battery protection Yes, internal
Operating voltage 6-20V, immunity to transients according to ISO 7637
Operating current (ECU) < 0.5A
Size (mm) 155x120x45
Weight (g) 500
Connectors 2 x 24 FCI Automotive connector
Communication USB (with PC client software), serial or CAN
OUTPUTS
Injector outputs 6 protected outputs 5A, low side
Ignition outputs 6 outputs 7A(15A peak) (passive&active coils supported)
Aux outputs 6 protected outputs 5A, low side
Stepper outputs Full bridge up to 0.8A, can be used as separate outputs
WBO heater Protected low side up to 5A
+5V 1
CAN BUS Yes, with additional module
Serial Yes
INPUTS
Analog inputs 7, 10Bits, 0-5V, 4 additional analog inputs with CAN module
EGT inputs 2 for K-Type thermocouple
Knock sensor 2
Oxygen sensor LSU 4.2 or Narrow band
Trigger inputs 3 (primary, 2 cams) Hall / VR software selectable
VSS 1 (Hall / VR)
Flex Fuel Using CAM#2 or VSS
SENSORS
Temperature sensors IAT, CLT, Oil temperature (user defined characteristic), AC evap temperature
Pressure sensor MAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor
Oxygen sensor LSU 4.2 (built in controller), Narrow band, external WBO controllers
Speed Vehicle speed sensor (VR/HALL), Gear sensor (sensor, calculated)
FUELING
Injectors Up to 6 Hi Z injectors (sequential)
Battery compensation User defined, wizard for popular injectors
Fueling strategies VE based speed density, Alpha N
Air charge temp. Based on IAT and CLT
VE table 2 tables 16×20 (Load x RPM), resolution of 0.1%
Individual cylinder trim Yes
Staged injection Yes
Additional correction EGT correction (per cylinder), BARO, TPS vs MAP, TPS vs RPM, Warmup, Nitrous, LC, ALS, ASE, Fuel pressure, Knock sensor
Lambda based real time correction Using Lambda/AFR target table
Acc. / Deceleration enrichment Yes
IGNITION
Ignition outputs 6 for passive and active coils (software selectable)
Supported triggers N-1, N-2, N-3, N+1, Multitooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Wiliams / Alpine, Colt 1.5CZ
Ignition angle table 2 tables 16×20 (Load x RPM), resolution of 0.5 Deg
Per cylinder trim Yes
Dwell time battery compensation Used defined, wizard for popular coils
Odd fire compatibility Application dependent
Additional correction CLT, IAT, TPS vs MAP, Nitrous, Idle, Knock sensor, LC, Pit limiter, ALS, Flat shift, Timers, Acc. enrichment
KNOCK SENSING
Channels 2
Resonant frequency range 1-20kHz, 3rd order AAF
Sampling Ignition event driven, knock window
Actions Ignition retard, fuel enrichment, dashboard indication
IDLE CONTROL
Control type PWM solenoids (2,3 wires), drive by wire, stepper motors (bi and unipolar), ignition cut, fuel cut
Control strategy Open / Close loop , ignition angle control
VE correction Yes, for Alpha-N
Corrections AC clutch, coolant fan, analog input
BOOST CONTROL
Boost ref and target tables 2 sets 16×20 (TPS vs RPM)
Control strategies Open / Closed loop (PID based)
Corrections Gear, VSS, IAT, EGT
DRIVE BY WIRE1
Control strategy Advanced 3D PID + static friction compensation
Supported throttles All with DC motor and current requirement lower than 6A Wizard for 28 popular electronic throttles
PPS to throttle position characteristic 3D table
BLIP support Yes
ALS support Yes
TRACTION CONTROL
TC strategy Delta RPM, gear compensation
Torque reduction Spark cut using 3D table (16×20)
Sensitivity control 10 position rotary switch
VARIABLE VALVE TIMING
Supported systems VVTi, MiVec, VANOS, Double Vanos
Number of camshafts 2
Control strategy PID based closed loop, CAM angle target tables 12×12
FLEX FUEL
Ethanol content measurement Yes
Fuel temperature measurement Yes
Tables blending VE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, Warmup
Fuel temperature PW correction Yes
SPORT
ALS 2 independent ALS setting, DBW support
Shift light Per gear shift light
Launch control Yes
Gear cut Yes (Open loop), DBW blip supported Source: Switch, load cell, CAN
Pit limiter Yes
Rolling anti lag Yes
ENGINE PROTECTION
Fail safe values for critical sensors Yes
Dashboard indication of failures Yes, user defined
Over temperature engine protection Yes, user defined, RPM limit
Low oil pressure protection Yes, user defined, shut off
Fuel pressure protection Yes, fuel dose compensation, RPM limit, engine shut off
High exhaust temperature Alarm, per cylinder fuel trim, boost limit
CAN BUS2
CAN standard 2.0A 125, 250, 500, 1000 kBps 11, 29 bits
Supported CAN Dashes3 ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM
Supported OEM CAN streams3 BMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST
OTHER
Unused injection outputs can be used as AUX output Yes
Unused ignition outputs can be used as AUX output Only for some functions
Output functions Fuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output, AC clutch, main relay, speedometer, tachometer
Password protection Yes, 2 levels
Timers Fuel, Ignition, Boost, timers controlled by virtual outputs
Serial dashboard support AIM, RaceTechnology
Autotune Yes
Built in trigger scope Yes
Logging Real time logging to PC computer, logging on external loggers (serial / CAN)
1External module required
2External module required
3Supported channels are application dependent
PMU-16
Decades ago, the critical electronic components in a race car were the ignition coil and points. Race cars now feature advanced engine management systems, antilock brake systems, paddle shifters, dataloggers, radios, electric pumps, fans, and lights. All components need to be controlled at the correct moment, and all components require circuit protection to prevent damage or fire.
Traditionally, fuses and relays served all of those purposes, but they have many disadvantages like complicated wiring looms, sensitivity to vibration/temperature, and difficult diagnostics.
All of these problems can be solved by using intelligent power management units (PMUs). Our newly developed PMU unit is at the forefront of technology. It provides 16 high current outputs (and use of multiple units if more outputs are required).
pmu-01
Download Files
PMUs comparison table
PMU software package 92.0.4 (2024/03/14)
PMU software change log
PMU User Manual 92.0.4 (2024/03/24)
PMU-16 Pinout 1.1 (2023/10/06)
PMU-16 3D model
Drawings – PMU-16
How-to Merge Projects in PMU
TECHNOTE: Configuring CAN BUS communication between EMU BLACK or EMU CAN and PMU-16
TECHNOTE: Improved Power Control Model for PMU-16
TECHNOLOGY
One of the main advantages of the PMU is continuous current sensing and self-resetting function if the current exceeds a defined level. All output state, voltage, and current information can be logged and transmitted via a CAN bus to dash displays to inform drivers of potential problems.
An additional advantage of the PMU system is the ability to define logic for controlling outputs. This is done with data from analog input channels or CAN bus data, and math operations can be defined for each channel. The PMU is also equipped with LED indicators to show the status of each output.
With the use of CAN bus keypads or steering wheel switches, all wiring is vastly simplified and lightened.
Two unique features are the inbuilt accelerometer and gyro for logging and “inertia switch” in case of an accident.
The PMU is assembled according to IPC-S-815A standards to ensure product reliability. The device is manufactured on an automated assembly line with optical inspection, and automated testing (including burn-in). The PCB material and design, special surface coating and IP60 enclosure ensure reliability even in the harshest environments. Carefully selected components allow for continuous and reliable operation across a very wide temperature range (AECQ-100 GRADE 1 (-40 to +125°C).
SPECIFICATION
GENERAL
Temperature range AECQ100 GRADE1 (-40 to +125°C)
CPU 32 bits automotive, 90MIPS
Operating voltage 6-22V, immunity to transients according to ISO 7637
Enclosure IP 60, bespoke CNC machined aluminium
Size (mm) and weight(g) 131x112x32.5, 370g
Connectors 1 x 39 Automotive connector,
1 x M6 stud for battery connection
PC communication CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER)
OUTPUTS
High current outputs 10 x 25A(cont.), 6 x 15A(cont.) with overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output
Total current output 150A continuous
Output current control step 100mA
Wipers output Dedicated output with wiper braking feature
+5V Monitored 5V, 500mA output for powering external sensors.
INPUTS
Analog inputs 16 inputs, 10 bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns
CAN Keypads 2 x Ecumaster keypads (4, 6, 8, 12 keys)
OTHER
Output state indication 16 bicolour LEDs
Accelerometer/Gyroscope 3D accelerometer with 3D gyroscope for logging and crash detection
Real time clock Yes, super capacitor for backup power (up to 3 days)
CAN BUS
CAN interface 2 x CAN2.0 A/B
CAN standard CAN2.0 A/B – 125, 250, 500, 1000 kbps
Input/output stream User defined with bit masking,
up to 100 input messages
LOGGING*
Logging memory 256 Mbytes
Logging speed Variable, defined per channel, up to 500Hz
FUNCTIONS
Logical operations AND, OR, NOT, XOR, >, <, =, >=, <=, !=, isTrue, isFalse, Toggle, Flash, Pulse
Number of functions 100
Number of operations 250
Update frequency 500Hz
Special functions Wipers, Indicators
*Version PMU-16DL
PMU-16
Decades ago, the critical electronic components in a race car were the ignition coil and points. Race cars now feature advanced engine management systems, antilock brake systems, paddle shifters, dataloggers, radios, electric pumps, fans, and lights. All components need to be controlled at the correct moment, and all components require circuit protection to prevent damage or fire.
Traditionally, fuses and relays served all of those purposes, but they have many disadvantages like complicated wiring looms, sensitivity to vibration/temperature, and difficult diagnostics.
All of these problems can be solved by using intelligent power management units (PMUs). Our newly developed PMU unit is at the forefront of technology. It provides 16 high current outputs (and use of multiple units if more outputs are required).
pmu-01
Download Files
PMUs comparison table
PMU software package 92.0.4 (2024/03/14)
PMU software change log
PMU User Manual 92.0.4 (2024/03/24)
PMU-16 Pinout 1.1 (2023/10/06)
PMU-16 3D model
Drawings – PMU-16
How-to Merge Projects in PMU
TECHNOTE: Configuring CAN BUS communication between EMU BLACK or EMU CAN and PMU-16
TECHNOTE: Improved Power Control Model for PMU-16
TECHNOLOGY
One of the main advantages of the PMU is continuous current sensing and self-resetting function if the current exceeds a defined level. All output state, voltage, and current information can be logged and transmitted via a CAN bus to dash displays to inform drivers of potential problems.
An additional advantage of the PMU system is the ability to define logic for controlling outputs. This is done with data from analog input channels or CAN bus data, and math operations can be defined for each channel. The PMU is also equipped with LED indicators to show the status of each output.
With the use of CAN bus keypads or steering wheel switches, all wiring is vastly simplified and lightened.
Two unique features are the inbuilt accelerometer and gyro for logging and “inertia switch” in case of an accident.
The PMU is assembled according to IPC-S-815A standards to ensure product reliability. The device is manufactured on an automated assembly line with optical inspection, and automated testing (including burn-in). The PCB material and design, special surface coating and IP60 enclosure ensure reliability even in the harshest environments. Carefully selected components allow for continuous and reliable operation across a very wide temperature range (AECQ-100 GRADE 1 (-40 to +125°C).
SPECIFICATION
GENERAL
Temperature range AECQ100 GRADE1 (-40 to +125°C)
CPU 32 bits automotive, 90MIPS
Operating voltage 6-22V, immunity to transients according to ISO 7637
Enclosure IP 60, bespoke CNC machined aluminium
Size (mm) and weight(g) 131x112x32.5, 370g
Connectors 1 x 39 Automotive connector,
1 x M6 stud for battery connection
PC communication CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER)
OUTPUTS
High current outputs 10 x 25A(cont.), 6 x 15A(cont.) with overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output
Total current output 150A continuous
Output current control step 100mA
Wipers output Dedicated output with wiper braking feature
+5V Monitored 5V, 500mA output for powering external sensors.
INPUTS
Analog inputs 16 inputs, 10 bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns
CAN Keypads 2 x Ecumaster keypads (4, 6, 8, 12 keys)
OTHER
Output state indication 16 bicolour LEDs
Accelerometer/Gyroscope 3D accelerometer with 3D gyroscope for logging and crash detection
Real time clock Yes, super capacitor for backup power (up to 3 days)
CAN BUS
CAN interface 2 x CAN2.0 A/B
CAN standard CAN2.0 A/B – 125, 250, 500, 1000 kbps
Input/output stream User defined with bit masking,
up to 100 input messages
LOGGING*
Logging memory 256 Mbytes
Logging speed Variable, defined per channel, up to 500Hz
FUNCTIONS
Logical operations AND, OR, NOT, XOR, >, <, =, >=, <=, !=, isTrue, isFalse, Toggle, Flash, Pulse
Number of functions 100
Number of operations 250
Update frequency 500Hz
Special functions Wipers, Indicators
*Version PMU-16DL
https://www.ecumaster.com/products/pmu24/
NEW PMU-24 DL AVAILABLE NOW!
PMU-24 DL is a new and enhanced Power Management Unit featuring all the benefits of the PMU-16, now with 24 high-side outputs and internal data logging memory as a standard. All output states, voltage, and current information are transmitted via CAN bus to a dash display to inform the driver of potential problems. All logged data can be downloaded from the device for later analysis.
1.499,00 €*
Diese Website verwendet Cookies, um eine bestmögliche Erfahrung bieten zu können. Mehr Informationen ...
